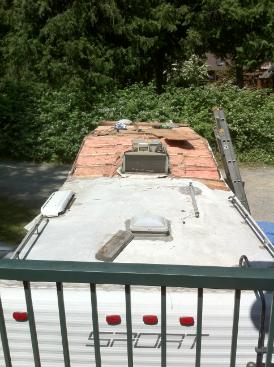

Removing old rubber RV roof Duncan BC

Old leaking EPDM rubber roof, it seems in the rv world that caulking is a roofing product we don't share the same admiration for caulking. The poor roof design of most recreational vehicles makes them prone to moisture problems due to poor or a total lack of ventilation.

 Moisture is not uncommon to any RV owners on the south coast, retail & RV stores sell a number of band aid solutions including fancy vent covers that they claim will stop leaks. It's a given that some leaks will be stopped when you install a vent over a vent. However none of these products are  installed with the use of the roofing membrane and are prone to failure.

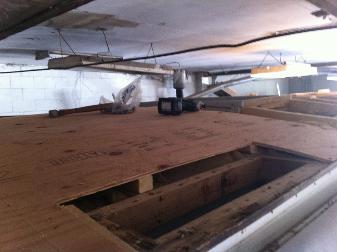

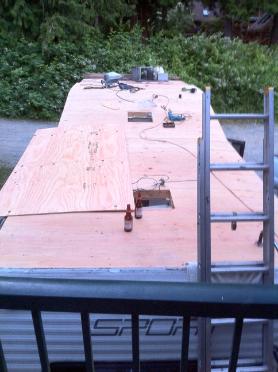

New Plywood on RV roof Victoria BC

RV Roof after installation of new plywood sheeting, we removed the old rotted sheeting and ant nests, at this time we install new ventilation system



On this project we followed some of the protocol to the installation of a EPDM rubber roof, taping the seams and edges to prevent

failure of product, however with a 60mm Mule Hide reinforced TPO roof this is highly unlikely to occur.




 TPO Roofing on RV roof Duncan BC

60mm Mule Hide TPO is very rigid and requires heating to mold it to the shape of the recreational vehicle.

60mm TPO rubber RV roof Duncan BC

In this picture you can see that a number of the vents and the AC unit are back in place, the rear vent is being welded in with 60mm TPO

when this rv was built the vent would have been caulked down with the hope that it wouldn't leak!

This picture is of an 1994 Terry fith wheel trailer, it was bought new in the Duncan, BC area. At first glance this trailer appears to be in beautiful condition.

Tweet

However once we started to remove the roof the monkeys popped out, thin 3/8" OSB board the moisture had made it soft and black.

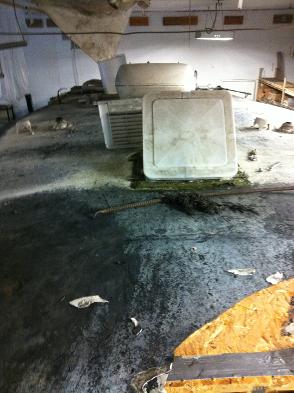

Here you see the OSB board on this RV Roof has turned to mush and black mold is growing on the front of the bunk.

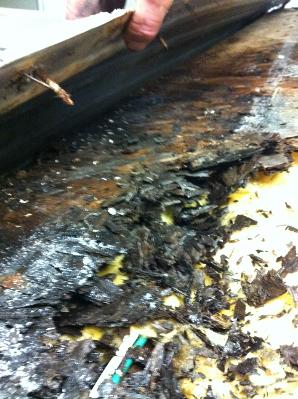

rotted osb sheeting rv Duncan BC

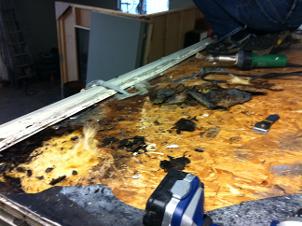

More mold and rotted OSB board.

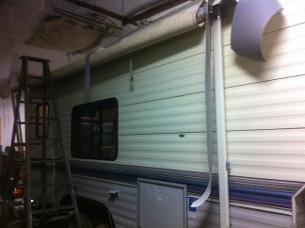

awning rv trailer in Victoria, B.C.

Here the awning is pulled away to install the new TPO roofing.

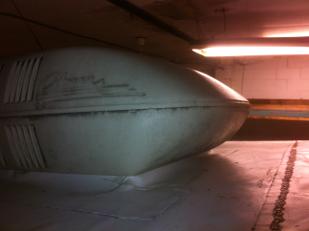

TPO RV ROOF AC DUNCAN, B.C.

Here you can see a curb has been built around the AC unit, and new roof is in place

NEW TRAILER ROOF VICTORIA, B.C.

This is the trailer leaving to its new home in Victoria, BC

TRAVEL TRAILER DUNCAN, B.C.

This was very beautiful trailer, but it was showing signs of water damage

ROOFER ON TRAILER MILL BAY, B.C.

Trim was removed for what we thought was a simple re-roof

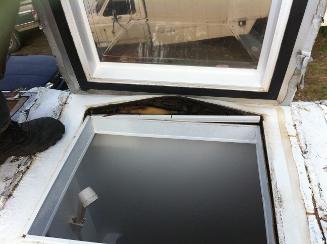

ROOF LEAK NEAR SKYLIGHT DUNCAN, B.C.

 The roof membrane showed signs of failure around skylights and vents.

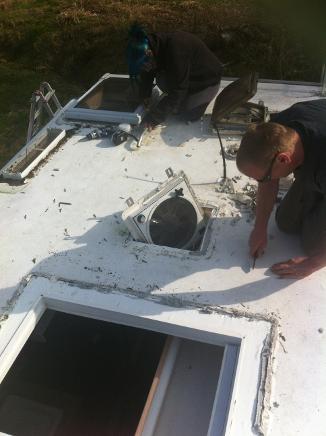

ROOFERS REMOVING OLD ROOF VICTORIA, B.C.

Removing the old roof and the tons of calking.

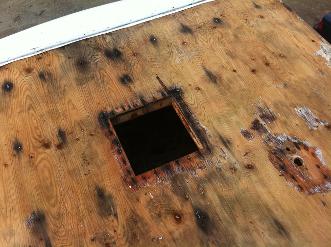

Removing the rear skylight we found the signs of rot

As you can see here there is lots of rot, What you are not seeing is the rafters, that have been built with finger joint lumber. If you built a building this way it would be condemned. If you are the do it your self type, this mess would stop most in their tracks.

 This is more rot and mold found on the front of the unit

We opted to install new roof trusses with a space for venting, we also changed the roof to a pitched design.

You can see we left space for venting an attic space, that will allow proper ventilation.

This is the new plywood roof deck ready for new Mule Hide TPO roof.

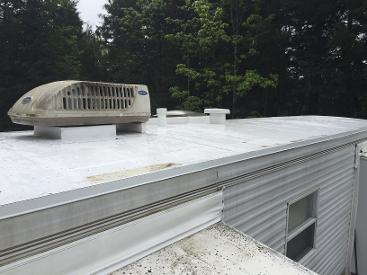

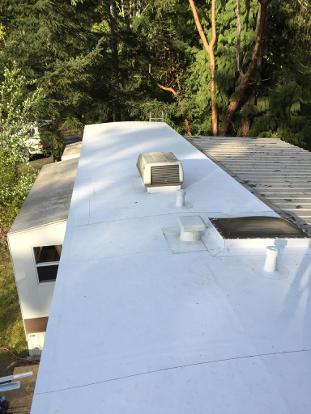

Here you can see the new Mule Hide TPO roofing has been installed and  fridge vents have been used to vent the attic,

 The trailer in the photo is a 40 foot park model. Each trailer is an evolution in design. There’s no book on how to fix a rotted out trailer that is one step from advanced fort building. That being said this trailer is something that we are proud of and I see the roof outliving the rest of the unit.

 On this unit we have done away with the leaking side flashing and installed our own flashing. We have made it bigger than the stock one and added a drip edge. The roofing welds to this flashing eliminating the need to pin the roof to the trailer with a thousand leaking screws calking and useless plastic trim.
